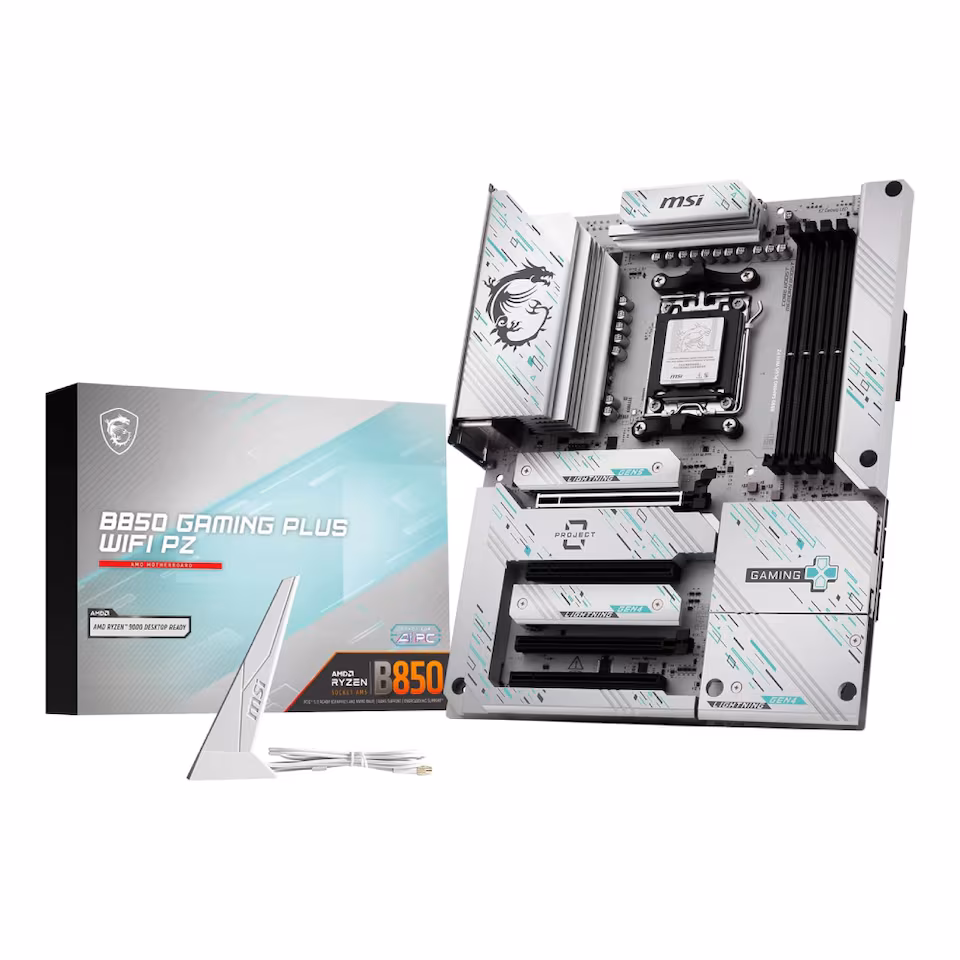

MSI B850 GAMING PLUS WIFI PZ

Description

1st M:2 highest PCI Express generation : 5.0

1st M:2 largest key size : 2280

2nd M:2 highest PCI Express generation : 4.0

2nd M:2 largest key size : 22110

3rd M:2 highest PCI Express generation : 4.0

3rd M:2 largest key size : 2280

ACPI version : 6.5

Audio chip : Realtek ALC897

Audio output channels : 7.1 channels

BIOS type : UEFI AMI

Bluetooth : Yes

Bluetooth version : 5.4

Compatible processor series : AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Component for : PC

CPU fan connector : Yes

Depth : 304.8 mm

DisplayPort version : 1.2

DisplayPorts quantity : 1

EAN : 4711377365284

ECC сompatibility : Non-ECC

Ethernet interface type : 5 Gigabit Ethernet

Ethernet LAN : Yes

Ethernet LAN (RJ-45) ports : 1

HDMI ports quantity : 1

HDMI version : 2.1

Manufacturer : MSI

Manufacturer Part Code : B850 GAMING PLUS WIFI PZ

Maximum internal memory : 256 GB

Maximum internal memory supported by processor : 256 GB

Memory channels : Dual-channel

Memory slots type : DIMM

Model : 0

Motherboard chipset : AMD B850

Motherboard chipset family : AMD

Motherboard form factor : ATX

Number of CPU fan connectors : 4

Number of HDDs supported : 4

Number of M:2 (M) slots : 3

Number of memory slots : 4

Number of RGB LED pin headers : 3

Number of SATA III connectors : 4

Number of storage drives supported : 7

Number of water pump connectors : 1

On-board graphics card : No

PCI Express x16 (Gen 3:x) slots : 2

PCI Express x16 (Gen 4:x) slots : 1

PCI Express x16 (Gen 5:x) slots : 1

Processor manufacturer : AMD

Processor socket : Socket AM5

Product colour : Black

Product name : B850 GAMING PLUS WIFI PZ

RAID levels : 0, 1, 5, 10

RAID support : Yes

RGB LED pin header : Yes

S/PDIF out connector : Yes

Supported memory clock speed (max) : 8200 MHz

Supported memory clock speeds : 4800,5600,6400,8200 MHz

Supported memory types : DDR5-SDRAM

Supported processor sockets : Socket AM5

Supported storage drive interfaces : M.2, Micro SATA III

Supported storage drive types : HDD & SSD

System Management BIOS (SMBIOS) version : 3.7

Top Wi-Fi standard : Wi-Fi 7 (802.11be)

Total number of SATA connectors : 4

USB 2:0 connectors : 4

USB 3:2 Gen 1 (3:1 Gen 1) connectors : 4

USB 3:2 Gen 1 (3:1 Gen 1) Type-A ports quantity : 1

USB 3:2 Gen 2 (3:1 Gen 2) connectors : 1

USB 3:2 Gen 2 (3:1 Gen 2) Type-A ports quantity : 1

USB 3:2 Gen 2 (3:1 Gen 2) Type-C ports quantity : 2

Width : 243.8 mm

Wi-Fi : Yes

Wi-Fi standards : 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)

Windows operating systems supported : Windows 11 x64
